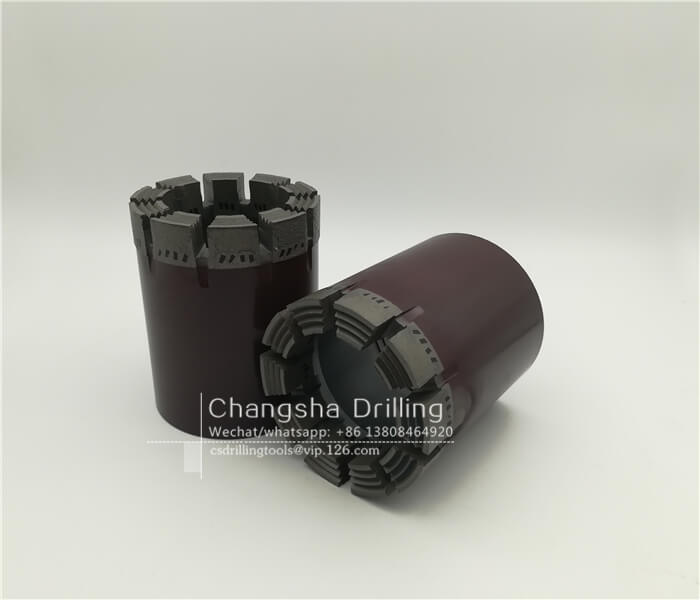

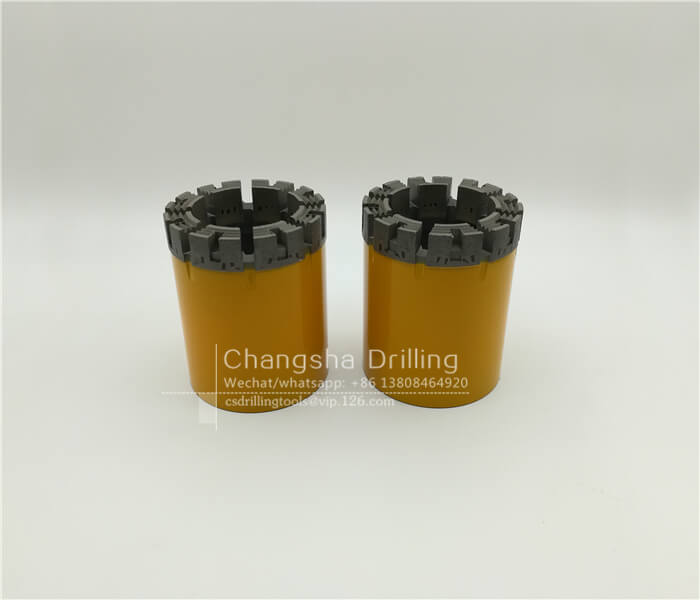

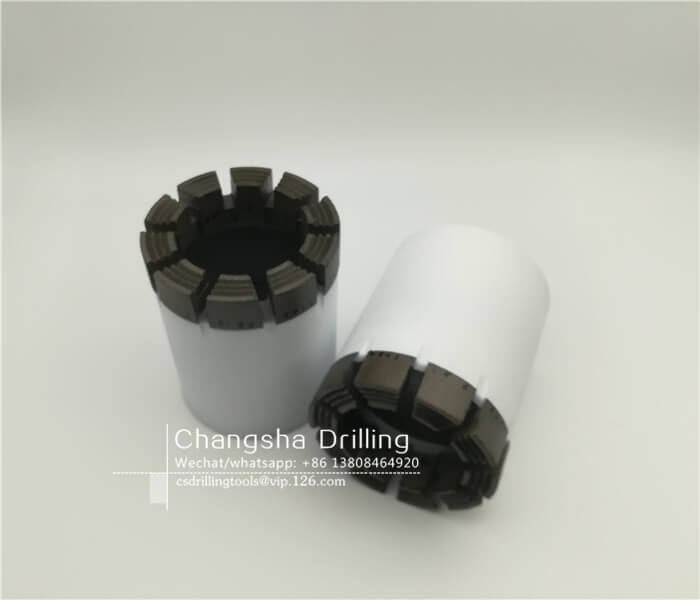

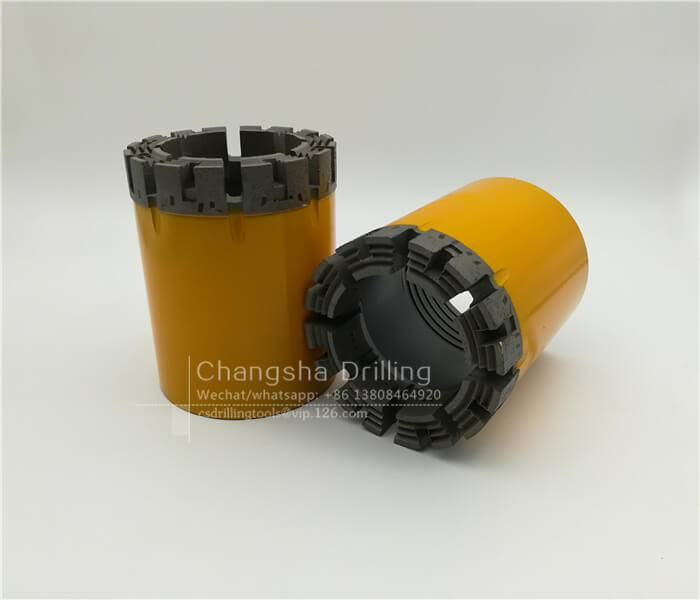

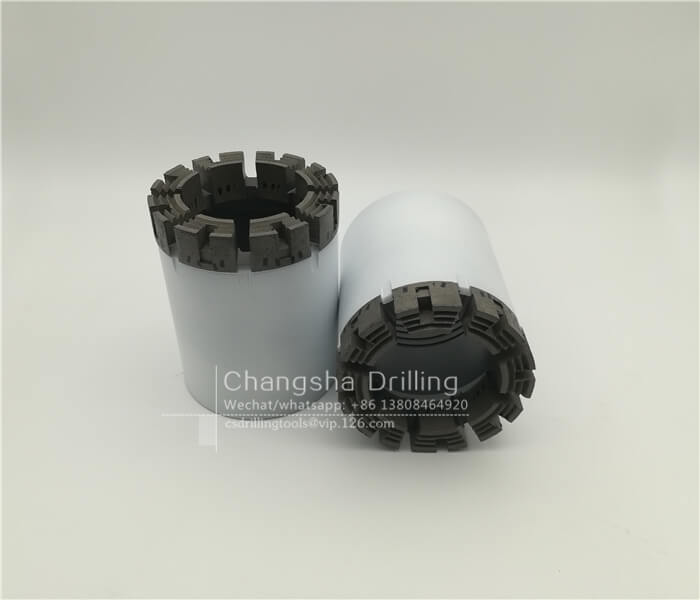

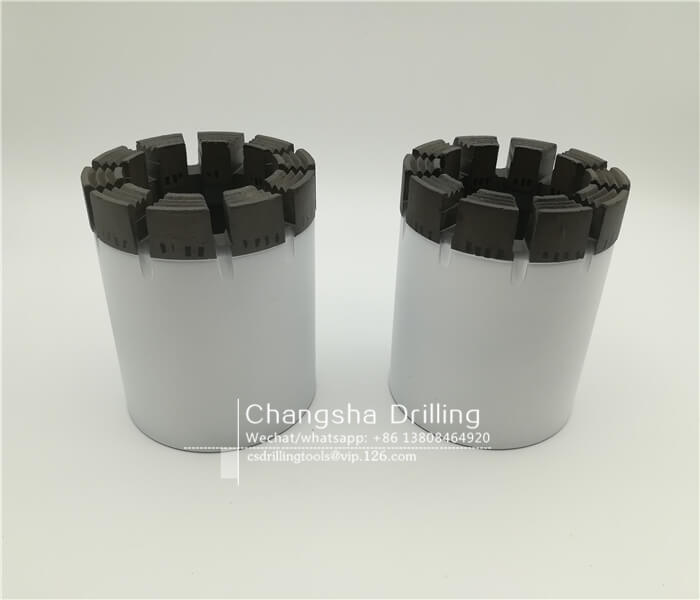

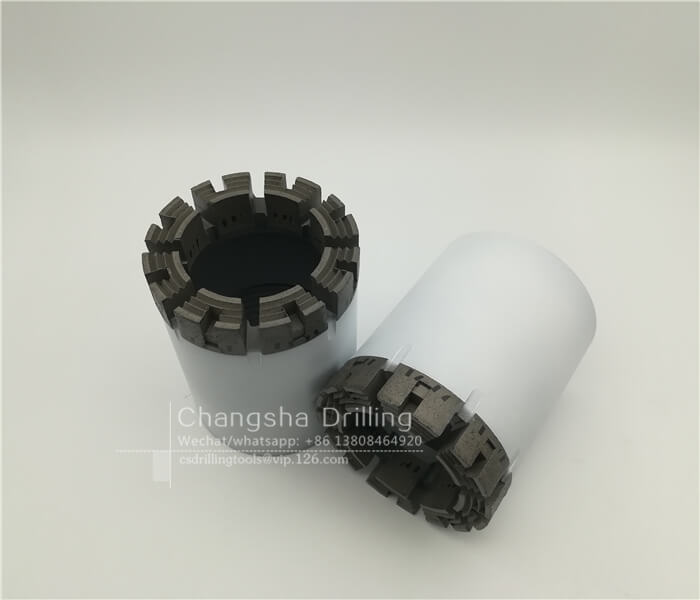

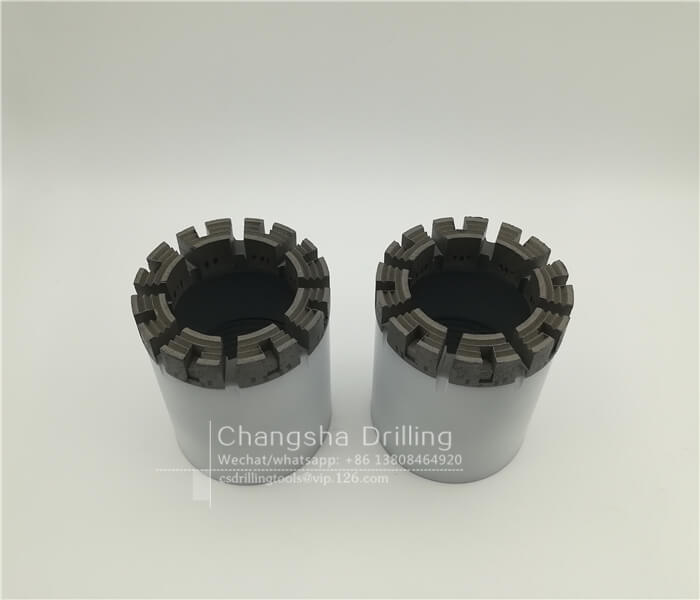

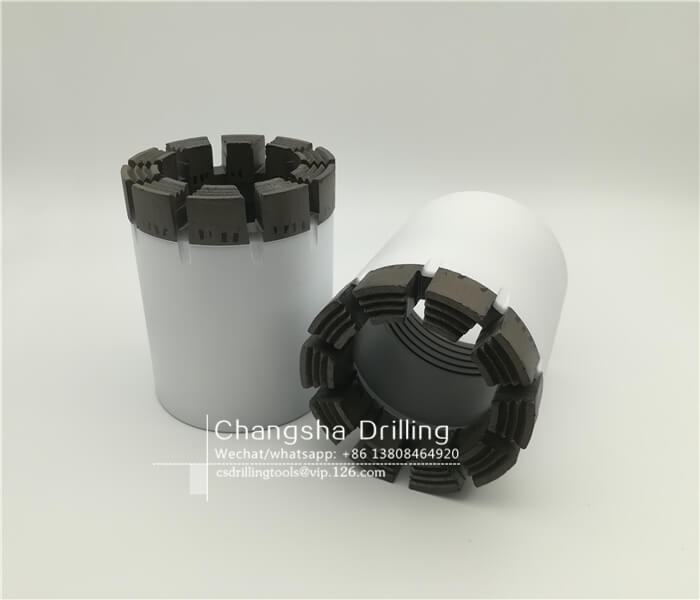

HQ Impregnated Diamond Core Bit
Size | HQ | Design | DCDMA |
Outer diameter MAX (mm) | 95.76 | Outer diameter MAX (in) | 3.770 |
Outer diameter MIN (mm) | 95.38 | Outer diameter MIN (in) | 3.775 |
Inner diameter MAX (mm) | 63.63 | Inner diameter MAX (in) | 2.505 |
Inner diameter MIN (mm) | 63.38 | Inner diameter MIN (in) | 2.495 |
Hole diameter (mm) | 96.1 | Hole diameter (in) | 3.78 |
Core diameter (mm) | 63.5 | Core diameter (in) | 2.5 |
Hole area (cm2) | 72.8 | Hole area (in2) | 11.29 |
Core area (cm2) | 31.7 | Core area (in2) | 4.91 |
